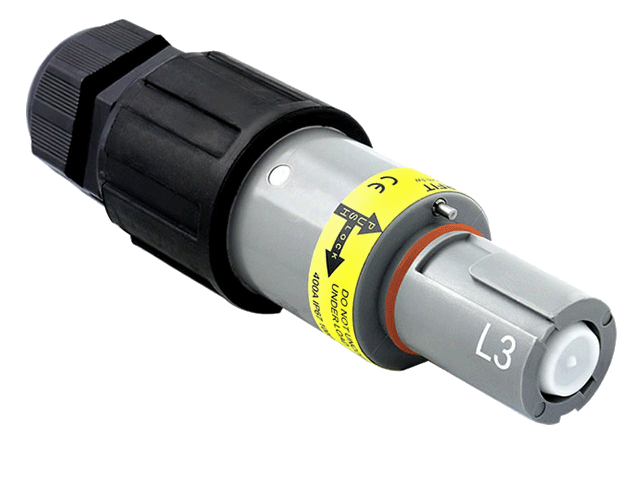

- Ergonomic hand grip assists easier handling.

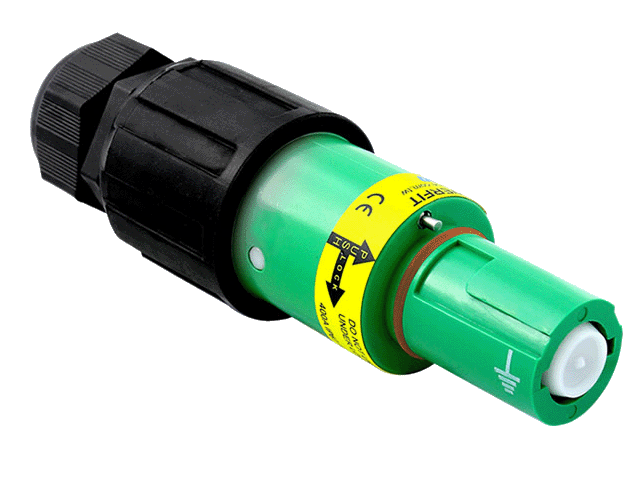

- Color coded and mechanically keyed to prevent mating errors.
- Contacts fitted with a plastic end cap to prevent accidental touching of live parts.
- IP 2X finger protection against electric shock.
- M40 cable gland is supplied with two rubber bushings,18mm (I.D.) and 26m (I.D.),for gripping cables up to 19-28mm diameter.
- R120 Reduction Sleeve, 16.50mm (I.D.) x 32mm(L),is included as standard for cable diameter 120mmsq; other size of sleeve is available upon request.
OUTSTANDING FEATURES
1. Innovative and key releasing pin delivers great convenience while uncoupling.
2. POM cotter pin for excellent insulation.
3. M40*1.5 cable gland with bushing for IP67.
4. Rubber bushing I.D.18 mm or 26 mm for gripping cable.
5. Brass with silver-plated for superior conductivity.
6. Silicon O-ring provides upmost airtight-alike mating.
7. Non-conductive high impact-resistant thermoplastic for max durability and safety
8. Ergonomic rubber grip offers comfort and easier handling.
Technical Information
- Current Rating: 400A continuous with 120mmsq cable.
- Withstanding Voltage: 1000Vac.
- Test Voltage: 4500Vac.
- Short Circuit Rating: Up to 35.5kA.
- Insulation Resistance: >5000 M Ohms at 500Vac.
- Contact Resistance: 0.1m Ohms.
- IP rating while mated: IP67.
- Contact Material: Brass with silver plated
- Housing Material: High Impact Resistant Thermoplastic.
- Cotter Pin Material: POM.
- Working Temperature: 45 to 85 Degree C
- Contact Type: Set Screw.
- Set Screw Torque on Brass Contact: 10.5 N/meter (minimum required).
- Mating Cycle: 500 / - Flammability: UL94-V0.
- CE and RoHS compliant.
