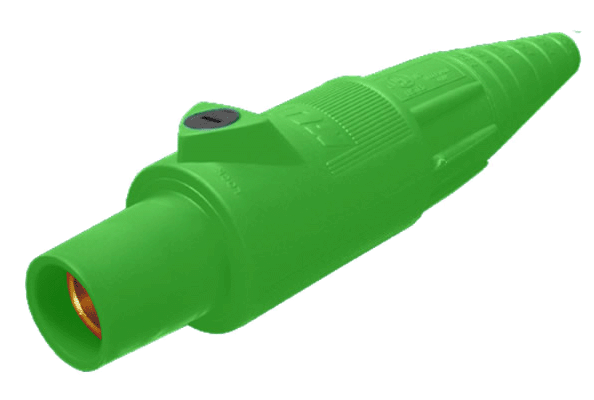

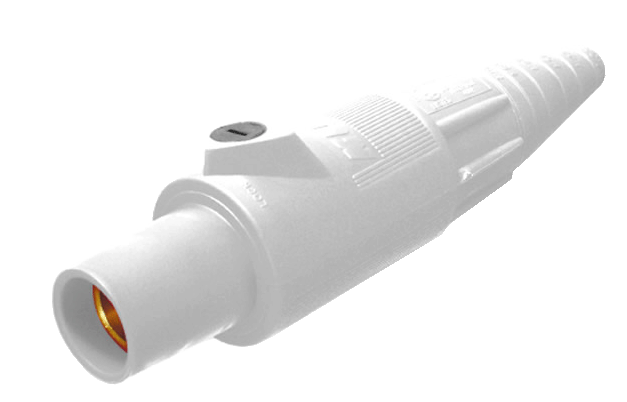

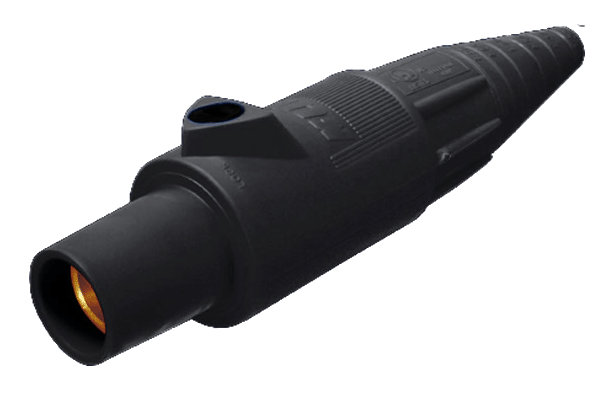

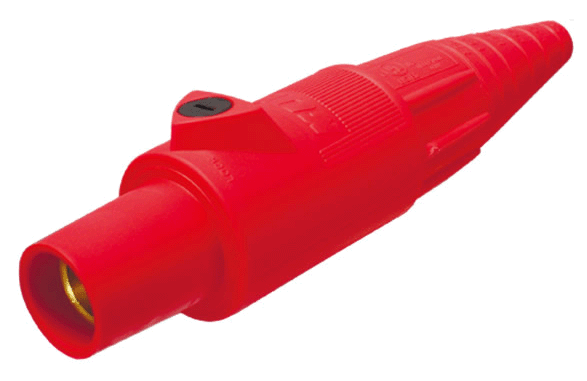

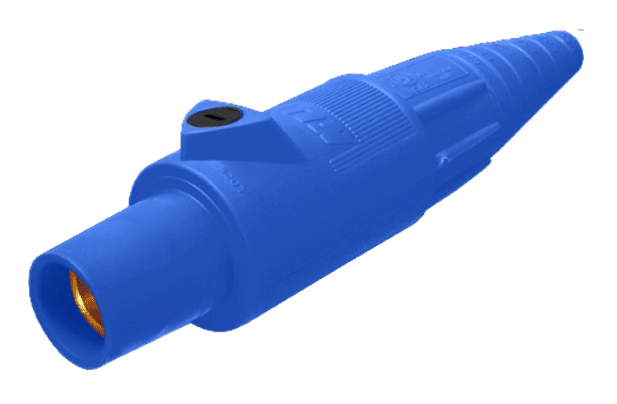

400A LINE FEMALE


Ordercode:400AU-FP

400A US Type Connectors for Power Input and output.

TECHNICAL INFORMATION

Voltage Rating: 600V Maximum
Amperage Rating: 400A Maximum
Base Compound: Santoprene 105 ℃ rated
Contact Material: Brass
Terminal Accommodation: #6, #4, #2, 2/0, 4/0 POM (Longer set screw required for #6 & #4)
Retaining Pin Material: POM


OUTSTANDING FEATURES
1. Non-metallic retaining pin provides superior durability and insulation.
2. Arrow point provides clear identification.
3. Easily identifiable line for cable cut-off.
4. Ribbed body for slip-free grip.
5. Robust insulation sleeve adds heat-resistance and strength to the connector.
6. High-conductive brass contact.
7. Wide range cable access form 0.33” to 1”
8. Double set screw terminations
