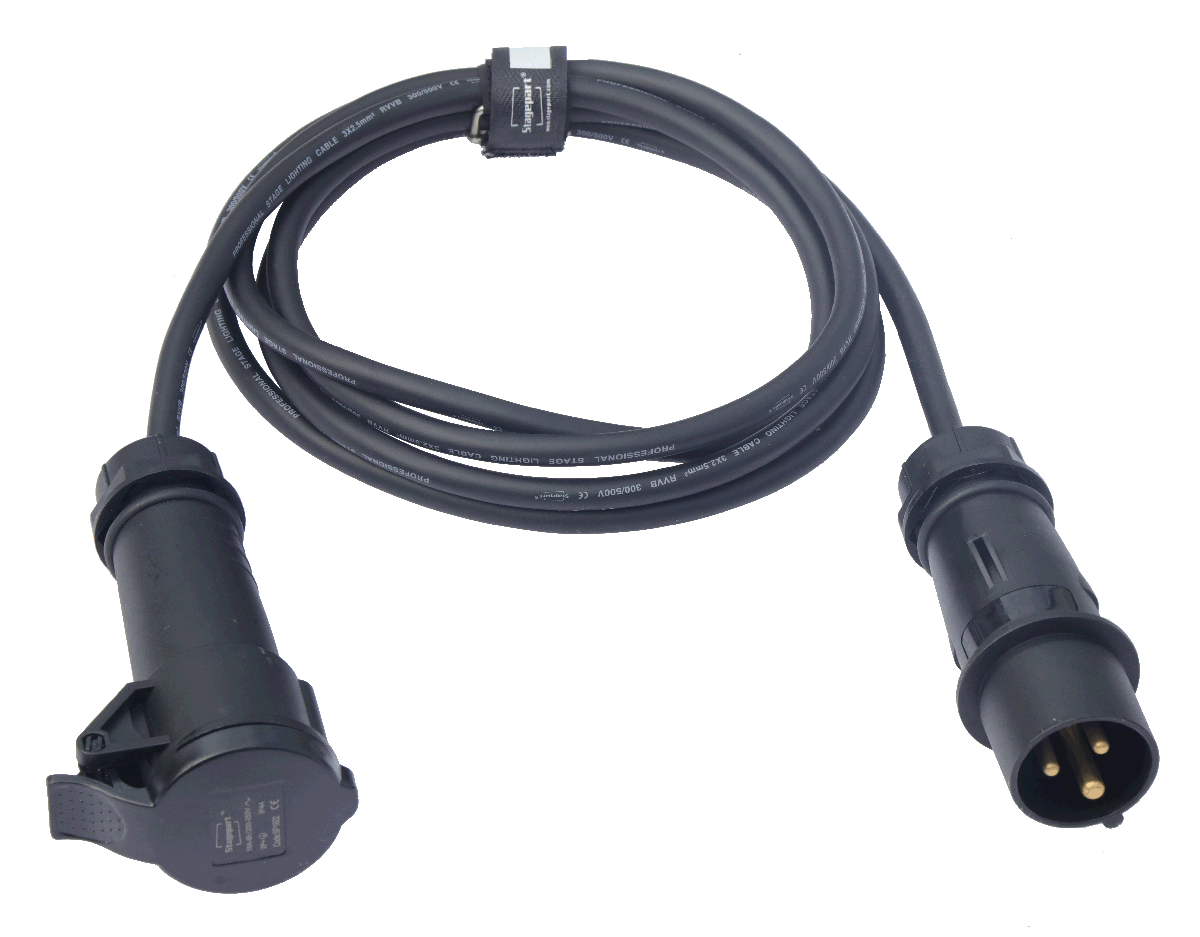

16A CEE Extension Cable


Ordercode:SP-16AC3M

     CEE connection and extension cable 16A H07RN-F 3G2,5 mm² for tools, equipment and machines on construction sites, event technology in dry and damp rooms and outdoors. The cable is oil, UV and ozone resistant and splash-proof to IP44. The mentioned Ampacity requires a maximum ambience temperature of 30 °C. For higher temperatures you have to calculate with reduction factors.

Feautures and Specifications:

• 16A 3P female&male CEE power connector
• Can customized company info
• Different color label for optional
• Add cable tie on the cable
• Length: 1.5M, 3M, 5M (Or any other length)
• Connection system :  screw contact
• Type of wire :  Rubber cable H07RN-F, 3x2.5mm cable
• Permitted outer cable temperature, fixed, °C :  -25 - +80 °C
• Permitted outer cable temperature, moved, °C :  -25 - +80 °C
• Nominal voltage: U 230 V
• Ampacity : 16 A
• Protection class : IP44
• Outer diameter approx. : 13.50 mm
• Clock position : 6H
